Bench Mark Dot Pin Marking System

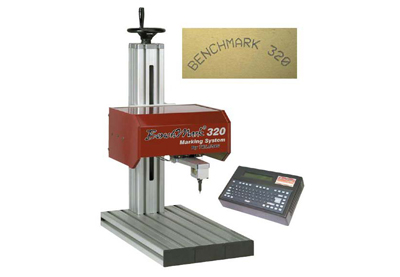

Bench Mark 320
The Bench Mark* 320 is a economical, fully programmable alternative to old-fasinoned permanent marking techniques. This complete system, with self-contained controller and extruded aluminum marking head mounting post and base, is the right choice for many stand-alone bench top marking applications. An Electromechanical marking pin eliminated the need for any air supply, making it easy to move the BenchMark* 320 from one work area to another.
"I want to thank Telesis for manufacturing a product that performs as well in real life as it states in your literature. Our new BenchMark* 320 Marking System from Telesis has performed above our expectations since putting it into service. The BenchMark* 320 greatly simplified our identification tag printing process and provided Krisp Kreme with "just in time" tag production capabilities. If you are looking for high quality, flexibility and reliability in permanent marking equipment, Telesis had the solution." Jeff Renz, Krispy Kreme
Features
- Extremely affordable
- High quality, permanent, programmable marking on a wide range of materials – from soft plastics to hard metals up to Rc60
- Large 4" x 6" (100 x 150mm) marking window
- Unique marking arm design allows clear access for loading and unloading of parts.
- Electromechanical marking pin eliminates the need for air supply.
- Marks up to 5 characters per second.
- Automatically generates serial numbers, as well as date, time and shift codes.
- Compact, convenient controller with rubber keyboard and 4-line LCD display-no PC required
Optional Accessories
- Rotary fixture for marking circumferences of cylindrical parts.
- Bar Code Scanner for automatic data entry
- Start-Print foot switch and Pushbutton station
- Logo/Font design software package for design of custom fonts or logos
- PC-Based upgrade utility available Free from www.telesis.com
- PC-Based pattern Back-up utility available Free from www.telesis.com

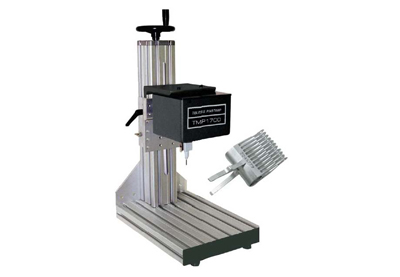

TMP 1700
The tmp 1700/420 or 470 is the lowest cost PINSTAMP Marking System. The Rugged TMP 1700 marking head features a compact, 1-1/2” x 2-1/2” (38.1 x63.5mm) window, marking speeds up to six characters per second. It's an excellent choice for many factories for online marking system.
Features
- 1-1/2”x2-1/2” (38.1 x 63.5mm) Marking window
- Rugged, low-maintenace X/Y platform
- compact marking head – approximately 6.6” x6.2 x 4.7” (168 x 158 x 120mm)
- Marks a wide range of materials from soft plastics to hardened steeld – up to Rc60
- Shutter assembly protects marking head from solid and liquid contatminants
- compact, convenient TMC420 Controller with rubber keyboard and 4-line LED dISPLAY – NO pc Required
- Dot density up to 200 dots per inch (179 per centimeter)
- choice of interchangeable marking pin types for depths from .001” (0.3 - .45mm)
- pin travel accommodates surface irregularities to .25” (6mm)
- Automatically generates serial numbers, time, time, date and shift codes.
- Stores up to 200 marking patterns
- Easily interfaced to PLCs (Programmable logic controllers ) and host computers
Optional Accessories
- Marking head mounting post including programmable Z- AXIX VERSION
- Panel-mount and IP/ NEMA Rated controllers
- Logo/ Font design software package for design for custom font or logos
- PC-Based Upgrade utility available FREE from www.telesis. Com for easy software upgrade
- PC-Based pattern back up utility available Free From www.telesis.com

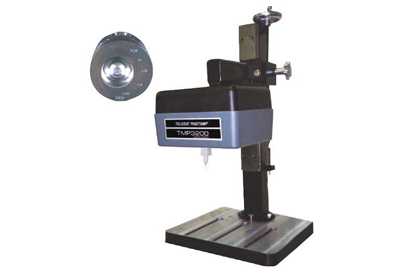

TMP 3200
The TMP3200/420 or 470 Single Pin Marking System features a large 4" x 6" (100 x 150mm) marking window and marking speeds up to six characters per second. Well suited for both bench top and factory-automated applications, its simple, yet robust belt-driven dual rail, X/Y platform yields high quality characters and low maintenance operation. TMP3200/420 or 470 includes the TMP3200 Marking Head, plus our WIN 32 Merlin||| Visual Design Software, with state-of-the-art graphical user interface.
Features
- 4 x 6 (100 x 150mm) Marking Window
- Belt-driven, dual rail X/Y mechanism with superior wear characteristics
- Patented floating pin technology accommo-dates surface irregularities of up to .25 (6mm)
- Marks a wide range of materials from soft plastics to hardened steel- up to Rc60
- Choice of pin sizes for marking depths from .001 -.018 (.03 -.45mm)
- Compact, convenient TMC420 controller with rubber keyboard and 4-line LCD display —
- no PC required
- Automatically generates serial numbers, date, time and shift codes
- Stores up to 200 marking patterns
- Easily interfaced to PLCs (Programmable Logic Controllers) and Host Computers
- Dot density up to 200 dots per inch (79 per centimeter)
Optional Accessories
- Rotary fixture for marking circumferences of cylindrical parts
- Marking head mounting post including programmable Z—axis version
- Panel-mount and IP/NEMA—Rated Controllers
- Logo-Font design software package for design of custom fonts or logos
- PC-Based Upgrade Utility available FREE from www. telesiscom for easy software upgrade
- PC-Based Pattern Back-up Utility available FREE from www.telesis.com
Hand Held Marking System

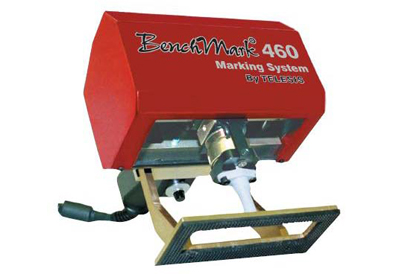

Bench Mark 460
The BenchMark 460 is a fully programmable, cost effective alternative to old-fashioned permanent marking techniques for parts too large or heavy to be carried to a marking station. Its hand-held marking head is lightweight and ergonomically designed, while providing a generous 25 x 100mm (1" x 4") marking window. An electromechanical marking pin eliminates the need for any air supply, making the BenchMark 460 truly portable.
Features
- Compact, ergonomic marking head weighs only 1.7 kg (3.75 pounds)
- Generous 25 x 100mm (1" x 4") marking window
- High quality, permanent, programmable marking on a wide range of materials — from soft plastics to hard metals up to Rc60
- No consumables
- Electromechanical marking pin eliminates the need for air supply.
- Marks up to 5 characters per second
- Automatically generates serial numbers, as well as date, time and shift codes
Optional Accessories
- Bar Code Scanner for automatic data entry
- Logo-Font design software package for design of custom fonts or logos
- PC-Based Upgrade Utility available FREE from www.telesis.com for easy software upgrade
- PC—Based Pattern (marking file) Back-up Utility available FREE from www.telesis.com

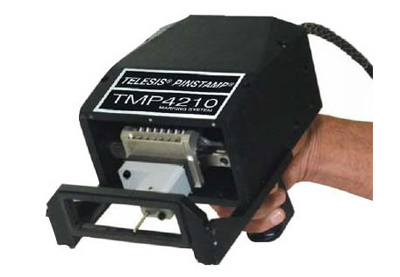

TMP4210
The TMP4210/420 is an extremely lightweight, hand-held, single pin marker satisfying a wide range of portable marking applications. Its robust rack-and-pinion design and compact envelope also make it the right choice for many high production and on-line applications.
Features
- Simple, Easy to Use Single Pin Design
- Compact and Ergonomic; Weighs about 2.0kg (4.4 pounds)
- Available with 25S or 150SA Marking Pin
- 50 x 13mm (2 x .5 ) Marking Window
- Economically Priced
- Marks up to 3.5 3mm (1/8 ) High Characters per Second
- Utilizes Same Rugged Rack-and-Pinion X/Y Platform as Field—Proven TMM4200
- Detachable Electronics Cab/e for improved Serviceability
- Teamed with Reliable, Self-Contained TMC420 or 470 Controller
- Also Available Without Handle and Stand-Off for Fixtured Applications
Optional Accessories
- Cable Balancer Attachment Bracket
- Marking Head Standoff V-Blocks for Marking the Circumference of Cylindrical Parts
- Bar Code Scanner for automatic data entry
- Logo-Font design software package for design of custom fonts or logos
- PC-Based Upgrade Utility available FREE from www.telesis.com for easy software upgrade
- PC-Based Pattern (marking file) Back-up Utility available FREE from www.telesis.com
- Compact TMC420 Controller features 4-line LCD Display — no PC required.

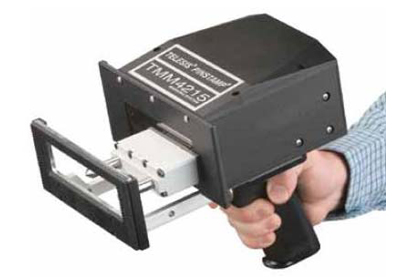

TMM4215
Bulk as well as retail order of the product can be fulfilled by us with ease. In addition, we guarantee to make delivery as per schedule. Our product range is subjected to stringent quality control procedures to ensure they are as per industry standards.
Features
- Compact, ergonomic design
- Weighs 4.5 pounds (2.0 kg)
- Marks up to four 0.125
- (3 mm) high characters per second
- Available with the high-speed 25S marking pin or the deep marking 150SA pin
- Marking depths up to 0.013
- (0.33 mm) in Mild Steel
- Rugged Rack and Pinion X/Y Platform for low maintenance operation
- Also available without handle and standoff for for fixtures applications
- Detachable Electronics cable for improved serviceability Self-contained, state-of-the-art TMC470 controller features two serial ports, USB and Ethernet ports (see page 28)
- Automatically generates serial number, time, date and shift codes
- Stores up to 200 marking patterns
- Easily interfaced to PLC (Programmable Logic Controllers) and host computers
Optional Accessories
- Panel-mount and IP/Nema rated controller options
- Cable balancer attachment kit
- Marking head standoff V-Block Kit for marking on the circumference of cylindrical parts
- Quick-disconnect tool post
- Bar code scanner for automatic data entry
- Logo-Font Design Software package for design of custom fonts or logos
- PC-based upgrade utility available FREE from www.telesis.com for easy software upgrade
- PC-based Pattern (marking file) Back-up utility available

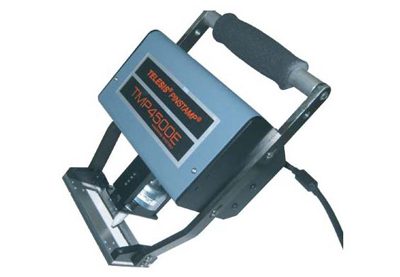

TMP4500
We follow a stringent quality procedure to ensure that only a qualitative range of products should be delivered at buyer's end. Being a quality-conscious firm, we are offering nothing short of the best quality products from Delhi(India).
Features
- Ergonomic dual handle design
- Large 1 x 4
- (25mm x 100mm) marking window
- Extremely robust design featuring rugged X-Y platform and all metal enclosure
- Powerful pin drive design for marking depths of up to 0.018(0.46mm) in mild steel
- Weighs less than 6.6 pounds (3.0kg) - less electronic cables
- Marks at speeds up to 3 characters-per-second
- Self-contained, state-of-the-art TMC470 controller with USB, Ethernet, and 2 serial ports
- Automatically generates serial numbers, date, time and shift codes
- Stores up to 400 marking patterns
Optional Accessories
- Bar code scanner for automatic data entry
- Quick disconnect tool posts for use in bench top applications
- Cable balancer attachment kit
- V-block kit for marking cylindrical parts
- Logo-Font Design software package for the design of custom fonts and logos
- Battery operated carrying case mounted version
